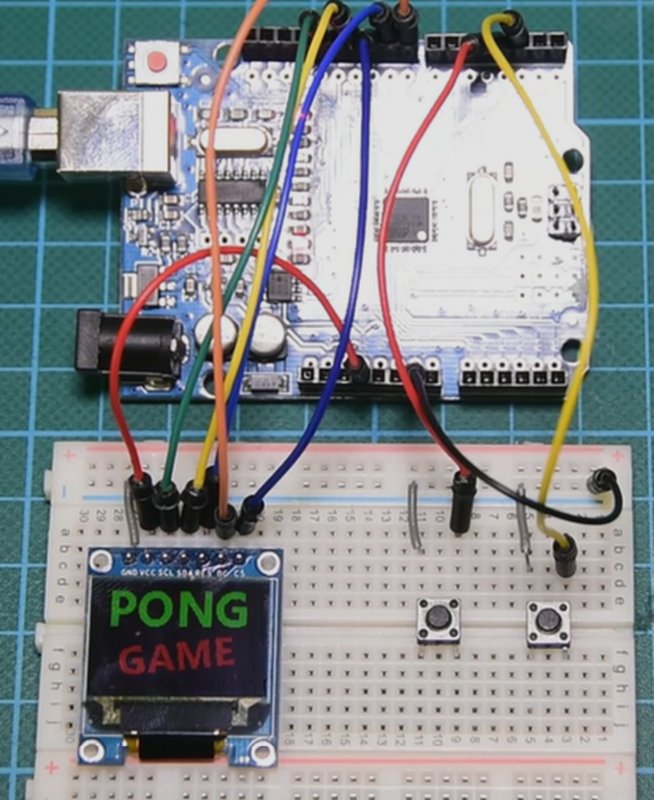

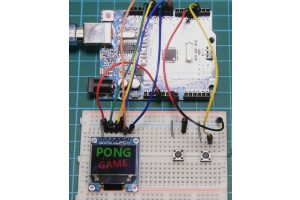

Cílem projektu bylo vytvořit jednoduchou digitální verzi klasické hry ping-pong pomocí mikrokontroleru Arduino a základních elektronických komponent. Slouží k interaktivní výuce programování a rozvíjí logické myšlení a umožňuje hráčům ovládat pálky a sledovat pohyb míčku na displeji. Hra demonstruje propojení hardwaru a softwaru, což z ní činí zábavný a vzdělávací projekt.

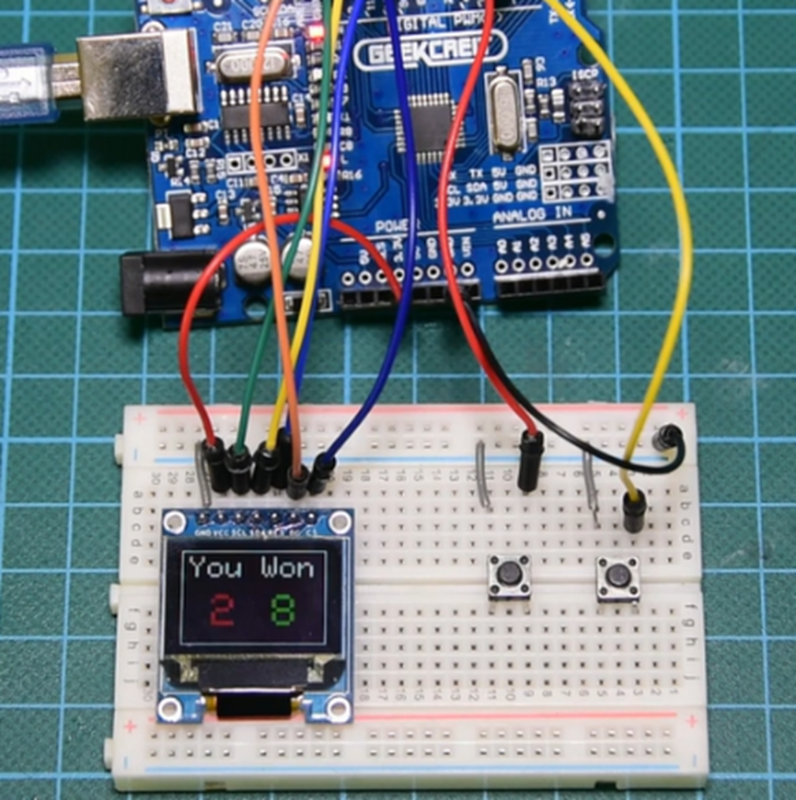

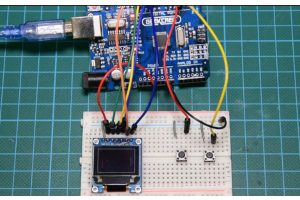

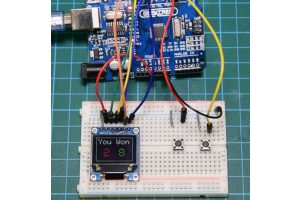

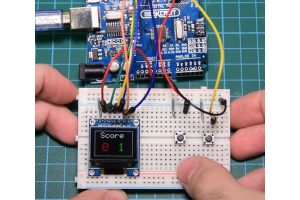

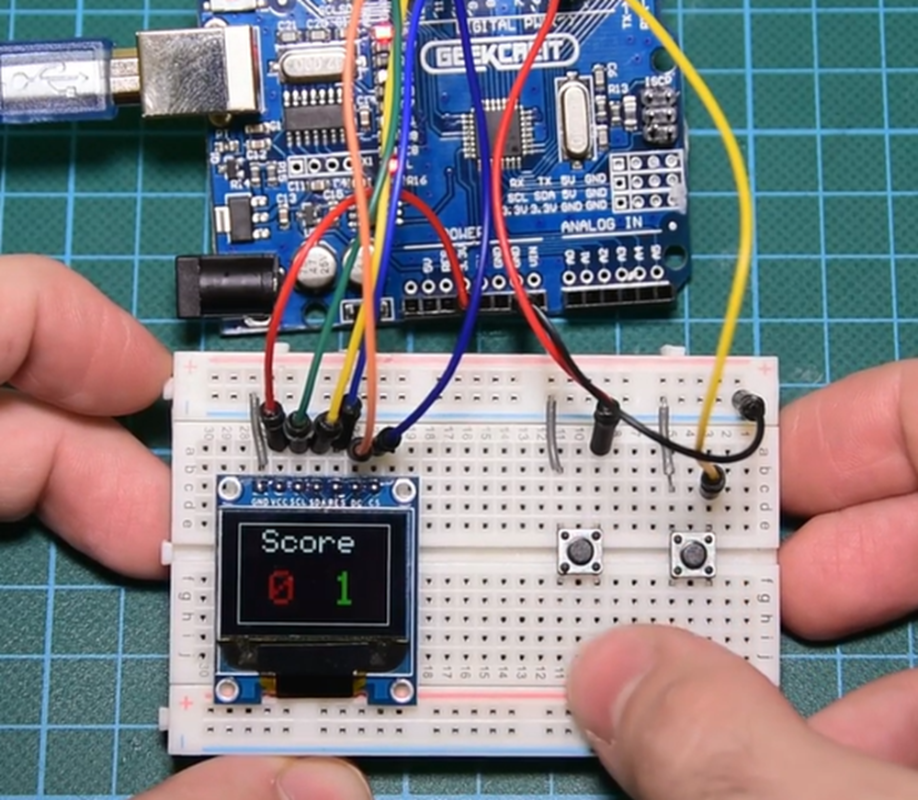

Zapojení:
Funkce komponenty | Pin na Arduinu |
Tlačítko – pohyb nahoru | 2 |
Tlačítko – pohyb dolů | 3 |
OLED displej – DC | 8 |
OLED displej – CS | 10 |
OLED displej – RESET | 9 |
OLED displej – SCL | 13 |
Kód pro Arduino:
#include <Arduino.h> #include <SPI.h> #include <Wire.h> #include <Adafruit_GFX.h> #include <Adafruit_SSD1306.h> #define UP_BUTTON 2 #define DOWN_BUTTON 3 const unsigned long PADDLE_RATE = 33; const unsigned long BALL_RATE = 16; const uint8_t PADDLE_HEIGHT = 24; // On MEGA, MOSI is 51, CLK is 52 #define OLED_DC 11 #define OLED_CS 12 #define OLED_RESET 13 // MOSI is Data pin on display breakout Adafruit_SSD1306 display(OLED_DC, OLED_RESET, OLED_CS); void drawCourt(); uint8_t ball_x = 64, ball_y = 32; uint8_t ball_dir_x = 1, ball_dir_y = 1; unsigned long ball_update; unsigned long paddle_update; const uint8_t CPU_X = 12; uint8_t cpu_y = 16; const uint8_t PLAYER_X = 115; uint8_t player_y = 16; void setup() { display.begin(SSD1306_SWITCHCAPVCC); // Display the splash screen (we're legally required to do so) display.display(); unsigned long start = millis(); pinMode(UP_BUTTON, INPUT); pinMode(DOWN_BUTTON, INPUT); display.clearDisplay(); drawCourt(); while(millis() - start < 2000); display.display(); ball_update = millis(); paddle_update = ball_update; } void loop() { bool update = false; unsigned long time = millis(); static bool up_state = false; static bool down_state = false; up_state |= (digitalRead(UP_BUTTON) == LOW); down_state |= (digitalRead(DOWN_BUTTON) == LOW); if(time > ball_update) { uint8_t new_x = ball_x + ball_dir_x; uint8_t new_y = ball_y + ball_dir_y; // Check if we hit the vertical walls if(new_x == 0 || new_x == 127) { ball_dir_x = -ball_dir_x; new_x += ball_dir_x + ball_dir_x; } // Check if we hit the horizontal walls. if(new_y == 0 || new_y == 63) { ball_dir_y = -ball_dir_y; new_y += ball_dir_y + ball_dir_y; } // Check if we hit the CPU paddle if(new_x == CPU_X & new_y >= cpu_y && new_y <= cpu_y + PADDLE_HEIGHT) { ball_dir_x = -ball_dir_x; new_x += ball_dir_x + ball_dir_x; } // Check if we hit the player paddle if(new_x == PLAYER_X & new_y >= player_y && new_y <= player_y + PADDLE_HEIGHT) { ball_dir_x = -ball_dir_x; new_x += ball_dir_x + ball_dir_x; } display.drawPixel(ball_x, ball_y, BLACK); display.drawPixel(new_x, new_y, WHITE); ball_x = new_x; ball_y = new_y; ball_update += BALL_RATE; update = true; } if(time > paddle_update) { paddle_update += PADDLE_RATE; // CPU paddle display.drawFastVLine(CPU_X, cpu_y, PADDLE_HEIGHT, BLACK); const uint8_t half_paddle = PADDLE_HEIGHT >> 1; if(cpu_y + half_paddle > ball_y) { cpu_y -= 1; } if(cpu_y + half_paddle < ball_y) { cpu_y += 1; } if(cpu_y < 1) cpu_y = 1; if(cpu_y + PADDLE_HEIGHT > 63) cpu_y = 63 - PADDLE_HEIGHT; display.drawFastVLine(CPU_X, cpu_y, PADDLE_HEIGHT, WHITE); // Player paddle display.drawFastVLine(PLAYER_X, player_y, PADDLE_HEIGHT, BLACK); if(up_state) { player_y -= 1; } if(down_state) { player_y += 1; } up_state = down_state = false; if(player_y < 1) player_y = 1; if(player_y + PADDLE_HEIGHT > 63) player_y = 63 - PADDLE_HEIGHT; display.drawFastVLine(PLAYER_X, player_y, PADDLE_HEIGHT, WHITE); update = true; } if(update) display.display(); } void drawCourt() { display.drawRect(0, 0, 128, 64, WHITE); }
